Swept Path Analysis
  • Home
  • Swept Path Analysis

Leading Provider of Vehicle Path Analysis in London

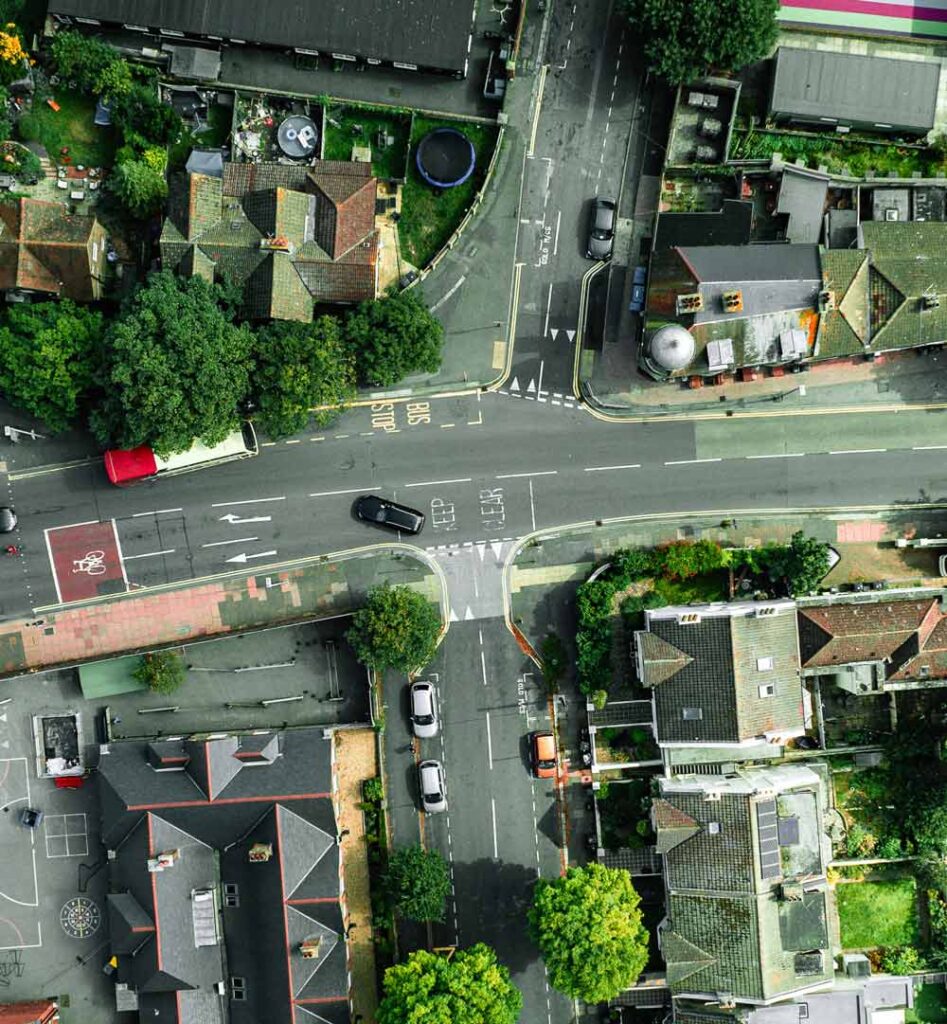

Swept Path Analysis in London

When it comes to the complex area of highway design and planning in London, one pivotal aspect that warrants meticulous attention is swept path analysis or sweep path as it’s sometimes referred to.

This essential procedure plays a vital role in ensuring the smooth movement of vehicles through junctions, roundabouts and estate roads. It covers key factors such as access, egress, parking and turning.

At JG Highway Design Ltd, we specialise in delivering comprehensive vehicle path analysis services to clients in London and beyond. Using advanced software, we simulate vehicle movements to identify any potential conflicts with surrounding infrastructure.

In dense urban areas or tight spaces, where every centimetre counts, a detailed Highway Access Design becomes essential. It helps highlight issues in access design, parking layout, turning zones and vehicle routes, enabling design changes that improve safety and efficiency.

Whether you’re looking to maximise parking space, improve access to a property or plan for construction vehicle movement, swept path analysis is a key part of the planning and design process.

Including this analysis early in the design phase can save both time and cost, particularly as the Highway Authority often requests it during the application determination stage.

With a library of over 1000 vehicle types, we’re ready to take on a wide range of challenges. If a specific vehicle isn’t available, our bespoke ‘vehicle build’ service offers a custom solution to meet your exact needs.

Entrust JG Highway Design with your swept path analysis requirements. Contact us today for a no obligation chat about how we can offer accurate, affordable SPA services tailored to your project.

Swept Path Analysis in London

Common vehicles the Highway Authority expects to be considered for access and turning:

  • Private Car
  • Supermarket and Delivery Vehicles
  • Refuse Collection Vehicle
  • Emergency Services
  • HGVs

Swept Path Analysis supports the planning and design of:

  • Agricultural and Industrial Access Design
  • Parking Provision for Private and Residential Developments
  • Schools
  • Supermarkets
  • Fuel Stations
  • Industrial Estate Manoeuvring
  • Turning Head Requirements
  • Oversized Vehicle and Abnormal Load Routing
  • Construction Traffic Management Plans (CTMP)

Swept path analysis is often requested by the Highway Authority at the last minute, but we’ve got you covered.

We can deliver swept path analysis in as little as 24 hours.

With access to over 1000 vehicle types in our extensive library, most requirements are met quickly and effectively. If you need a specific vehicle not included, our custom ‘vehicle build’ service ensures a perfect fit for your project.

Let JG Highway Design handle your swept path analysis in London. Contact us today for a no obligation discussion about how we can help deliver precise, cost-effective solutions.

Your road to success starts here.
